Laboratory Electric Benchtop Filtration Centrifuge

» Seed Analysis » Laboratory Electric Benchtop Filtration Centrifuge

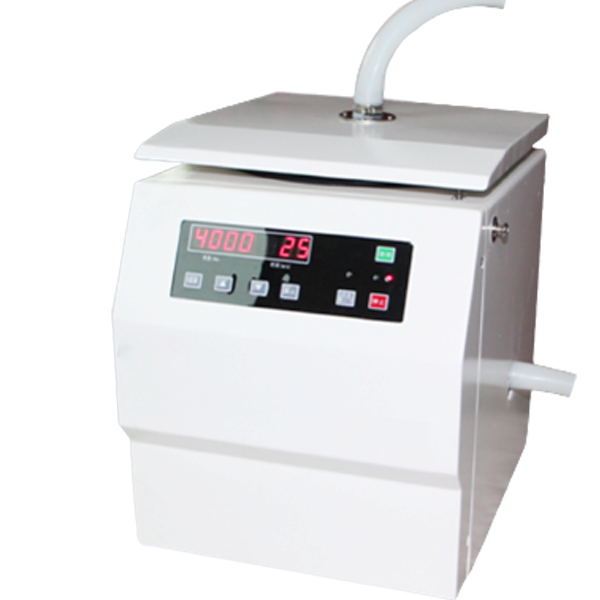

Laboratory Electric Benchtop Filtration Centrifuge

CATEGORY AND TAGS:
Seed Analysis

Model:TP4-4F

enquiry
  • Specifications

Features


◎All steel structure with stainless steel chamber.
◎AC frequency-variable motor drive with the digital display screen.
◎Parameters can be revised during operation without stopping.
◎Automatically calculate and display RCF.
◎With washing, dehydration, concentration, and filtration functions to achieve solid-liquid separation.
◎The special combination of vibration, automatic balance, low noise.
◎With continuous separation, the filter cartridge easy disassemble
◎Dryness reaches 90%

Applications



TP4-4F filter centrifuge can separate solid particles of different diameters by selecting different filter media, and the diameter of the solid particles can be separated by 1 um with a higher dryness level.

Technical Parameter



Model
TP4-4F
Max RPM
4000rpm
Max RCF
2280×g
Max Capacity
8-10L/min
Bearing Capacity
250ml
Timer
1min～99min
Revolutions/min
±10r/min
Voltage
AC 220±22V 50Hz 10A
Power
500W
Noise Level
≤ 60dB（A）
Dimensions (L x W x H)
385×320×270 (mm)
Packaging dimensions
460×390×330 (mm)
Net Weight
28kg
