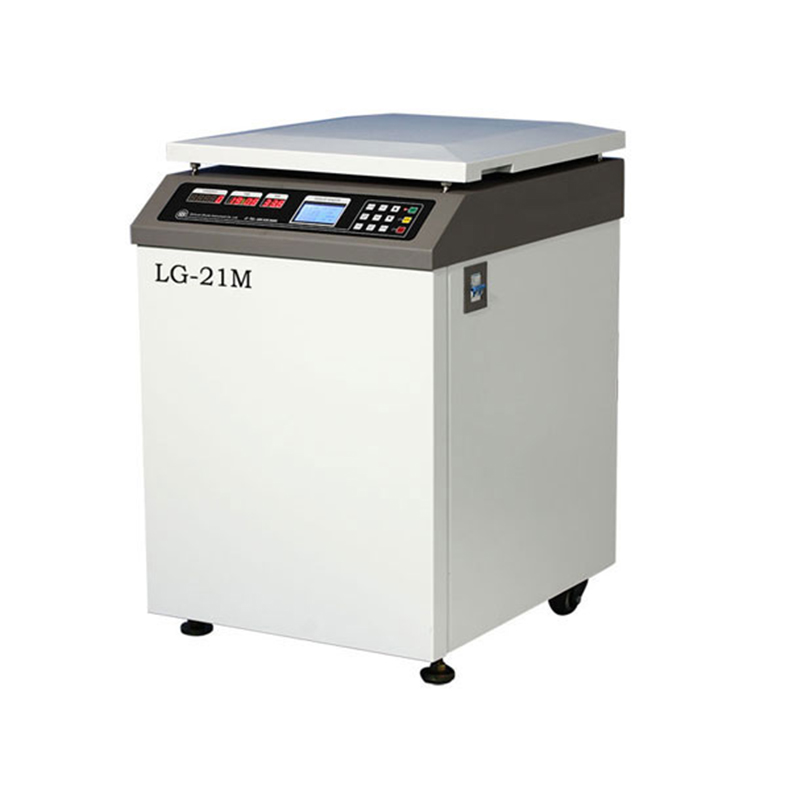

LG-21M Floor Standing High Speed Large Capacity Refrigerated Centrifuge

» General Lab Equipment » LG-21M Floor Standing High Speed Large Capacity Refrigerated Centrifuge

LG-21M Floor Standing High Speed Large Capacity Refrigerated Centrifuge

CATEGORY AND TAGS:
General Lab Equipment

Model:LG-21M

enquiry
  • Specifications

Introduction:

The machine adopts frequency conversion driving, micro-computer control and liquid crystal display. It can store12 operation procedures and there are 19 levels of acceleration and deceleration for your choice. Faults are diagnosed automatically. The refrigerating system uses imported compressors, CFC-free refrigerants, refrigerating/heating double loop, which make the machine highly efficient, heating and cooling fast and have small vibration. Press related parameters key to set rotor number, rotate speed, time, temperature, heating/refrigerating speed, or directly call the stored procedure number. Press the start button, the instrument will enter program control automatically. Operation parameters of instruments can be modified during operation. This machine is widely used in biology, medicine, genetics, agricultural science, food hygiene, environmental protection and other research and manufacturing institutions. Particles with different density in the solution can be separated.

Features & Advantages:

1. Variable frequency drive motor, microcomputer control

2. LCD & Digital display

3. Automatic rotor recognition to prevent from overspeed.

4. Automatic rotor locking,without locking nuts, bolts, wrenches, etc. It is safe, convenient and fast to take and placedirectly.

5. 40 levels of acceleration and deceleration, and it can store 12 users programs.

6. Automatic fault diagnosis

7. Imported compressor, CFC-free refrigerants, double circuit control for refrigeration and heating.

8. Programs of RCF can be set up directly.

9. Adopts Import famous variable frequency controller, which can control speed accurately and have a long service life.

10. The operating parameters can be modified during operation.

11. All-steel body ,three-layer steel for safety

LG-21M Specification:

Max Speed21000 r/min
Max RCF47400 Xg
Max Capacity6x500ml(10000rpm)
Speed Accuracy±10r/min
Temp Accuracy±1℃
Temp Range-20℃~40℃
Timer Range1~99H59 min/inching
Noise≤65dB(A)
PowerAC 220V 50HZ 32A
Dimension850x730x930( LxWxH) mm
Weight260 kg

Rotor Technical Data:

RotorCapacityMax SpeedMax RCF
NO. 1 Angle Rotor16x10ml21000rpm47400Xg
NO. 2 Angle Rotor24×1.5/2.2ml21000rpm43960Xg
NO. 3 Angle Rotor6x50ml20000rpm44800Xg
NO. 4 Angle Rotor8x50ml18000rpm38460Xg
NO. 5 Angle Rotor6x100ml15000rpm27090Xg
NO. 6 Angle Rotor8x100ml12000rpm19830Xg
NO. 7 Angle Rotor4x300ml14000rpm28150Xg
NO. 8 Angle Rotor6x300ml12000rpm24110Xg
NO. 9 Angle Rotor6x500ml10000rpm18590Xg
NO.10 Swing-out ELISA Plate Rotor2x2x96ml holes4000rpm2340Xg
NO. 11 Swing-out Rotor4x50ml10000rpm16200Xg
NO. 12 Swing-out Rotor4x30ml13000rpm23800Xg
NO. 13 Swing-out Rotor4x4x5ml12000rpm11900Xg
