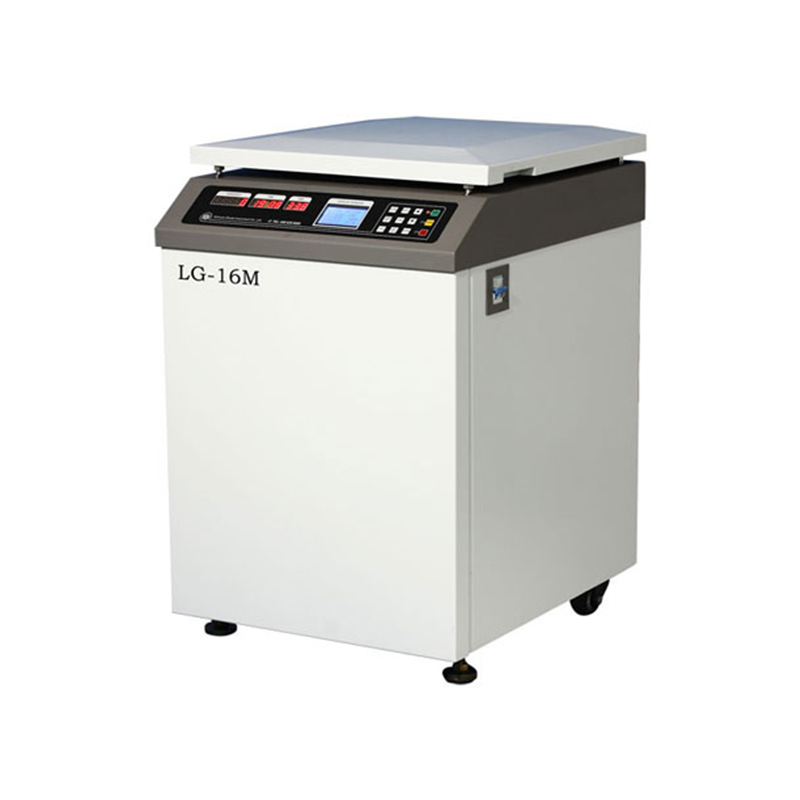

LG-16M Floor Standing High Speed Large Capacity Refrigerated Centrifuge

» General Lab Equipment » LG-16M Floor Standing High Speed Large Capacity Refrigerated Centrifuge

LG-16M Floor Standing High Speed Large Capacity Refrigerated Centrifuge

CATEGORY AND TAGS:
General Lab Equipment

Model:LG-16M

enquiry
  • Specifications

Features:
  The machine adopts frequency conversion motor driving,micro-computer control
  LCD, digital dual display
  Rotor head identify automaticlly to prevent speeding.
  Rotor head lock automatically without nut and bolt wrench,it is convenient and safe for taking
  It can store 12 operation procedures and there are 19 levels of acceleration and decelerationf for your choice.
  Faults are diagnosed automatically.
  Imported compressors ,CFC-Free refrigerants,refrigerating/heating double loop and precise in temperature control.
  RCF can be directly set up and display, without RPM / RCF translated
  imported well known frequency controller with precise speed control and durable in use .
  parameters of instruments can be modified during operation.
  Three-layer steel jacket could ensure the safety of the user and machine.

Technical Parameters
  max speed                     16000 r/min
  max RCF                       27520 Xg
  max capacity                  6X500ml(8000rpm)
  speed accuracy              ±10 r/min
  Temp accuracy              ±1℃
  Temp range                   -20℃ ~40℃
  timer range                   1~99H59 min/inching
  noise                            ≤65dB(A)
  power                          AC 220V 50HZ 32A
  demension                    850× 730× 930( L× W × H) mm
  weight                          260 kg

Rotor Technical Data:

Rotormax capacitymax speedmax RCF
NO.1 Angle rotor6x50ml16000rpm27520Xg
NO.2 Angle rotor24X1.5ml16000rpm25520Xg
NO.3 Angle rotor16x10ml16000rpm27500Xg
NO.4 Angle rotor6x100ml14000rpm23600Xg
NO.5 Angle rotor8x50ml14000rpm23270Xg
NO.6 Angle rotor6x300ml10000rpm16750Xg
NO.7 Angle rotor6x500ml8000rpm11860Xg
NO.8 swing-out rotor4x750ml4000rpm3500Xg
Kinds of rotors can be customized according to customer’s needs.
