TPF-200 Constant Temperature Soil Aggregate Analyzer

» Soil Analysis » TPF-200 Constant Temperature Soil Aggregate Analyzer

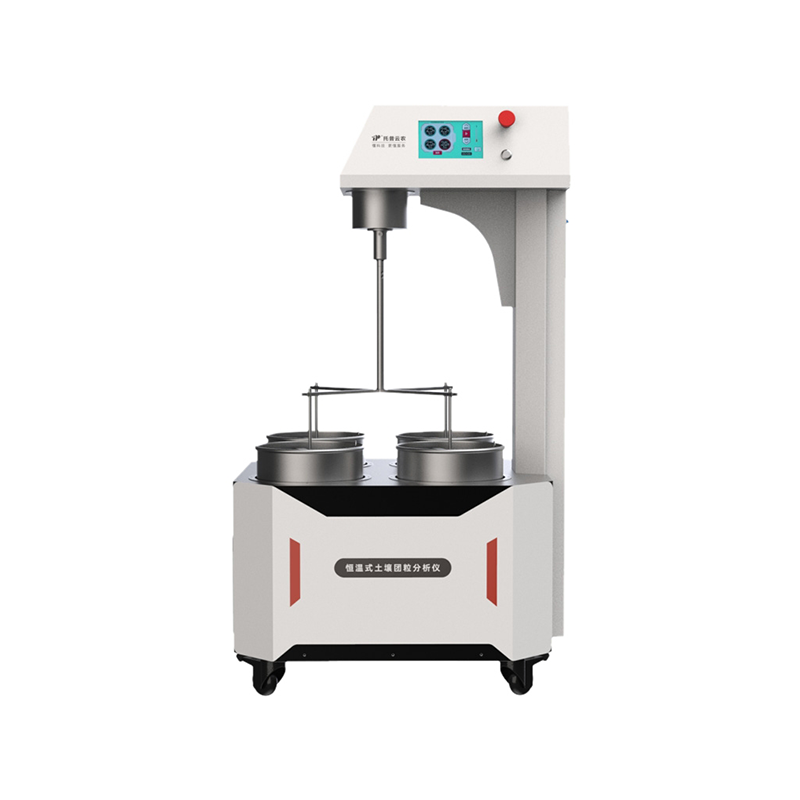

TPF-200 Constant Temperature Soil Aggregate Analyzer

CATEGORY AND TAGS:
Soil Analysis

Model: TPF-200

enquiry
  • Specifications

Introduction

TPF-200 Constant Temperature Soil Aggregate Analyzer can separate soil particles of standard size without affecting the structure of soil aggregates as much as possible,and is used in experiments for determining soil aggregates, adopting a constant temperature control system, which makes the temperature more uniform and the test more accurate.

The Function Features:

  • 7-inch touch color screen: 7-inch touch LCD screen, which can display time, oscillation frequency, temperature, operating parameters, running time, etc.
  • 360° surrounding heating: adopting constant temperature control system, the temperature is more uniform and the test is more accurate.
  • Single barrel temperature control: each analyzing barrel temperature can be controlled individually, and there is no interference between the barrels.
  • Simultaneous analysis of multiple samples: 4 samples can be analyzed at the same time to improve work efficiency.
  • Support dry sieving and wet sieving: increase the diversity of sample sieving.
  • No damage to the original structure of the soil: can effectively analyze the soil particles of calcium, magnesium, organic matter, mycelium and other cemented soil particles, to ensure that the original structure is still maintained after analysis.
  • Automatic timing: Start working after setting the testing time, and stop analyzing the samples automatically after the time is up.
    Easy to move: the equipment is equipped with universal wheels with brake function.
  • Stable performance, safe and reliable: with leakage protection design, with grounding protection line design, emergency stop button design.



The Technical Parameter:

Oscillation Frequency 1–45 cycles/min
Oscillation Amplitude 50 mm
Dimensions (L×W×H) 790 × 690 × 1,385 mm
Testing Buckets Stainless steel, 4 sets (Ø 25 cm × H 40 cm)
Sieve Specifications Stainless steel, 4 sets (Ø 20 cm × H 5 cm)
Oscillation Frame Stainless steel (4 samples simultaneously)
Sieve Frame Stainless steel, quick-release design for fast assembly and cleaning
Sieve Aperture 10 mm, 7 mm, 5 mm, 3 mm, 2 mm, 1 mm, 0.5 mm, 0.25 mm (includes top lid and bottom pan). Supports both dry and wet sieving. Custom aperture sizes available upon request.
Motor Speed 1,350 rpm
Temperature Range RT – 60 °C
Heater Power 4 units (600 W each)
Maximum Power 2,400 W
Power Supply AC 220 V, 50 Hz
Timer Range 1–60 min (adjustable)
