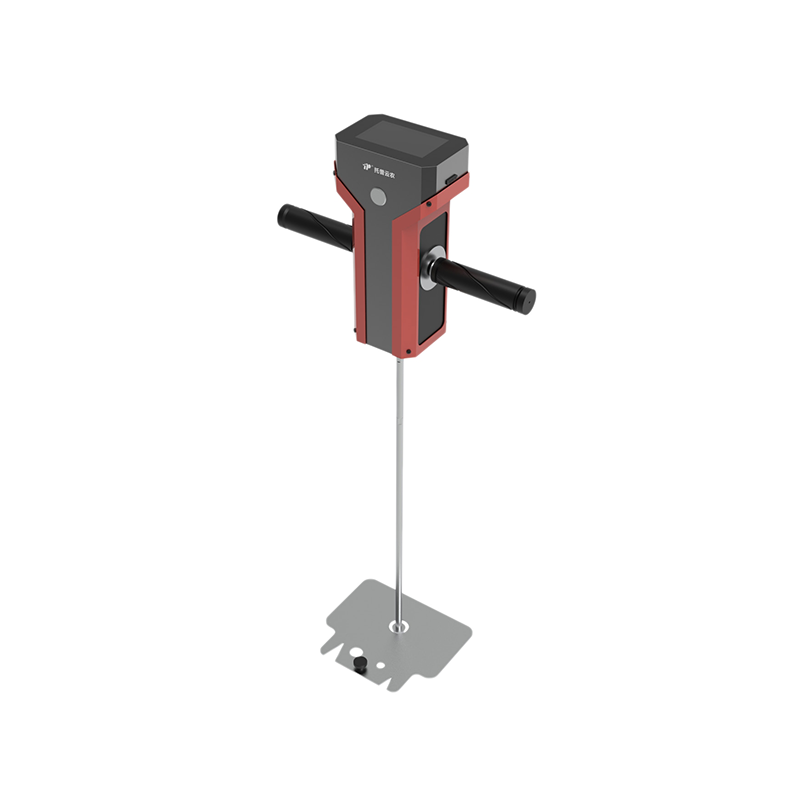

TJSD-750-V Soil Compaction Meter

Introduction

The soil compaction tester is designed to directly measure soil compaction.

The Function Features:

• Simple operation, easy to carry, suitable for all-weather field measurement use.
• Uniform displacement reminder function and transverse and longitudinal position
  balance detection prompt function.
• Equipped with two different measuring area cone heads as standard, which can be suitable
  for clay, sand, loam and other types of soil to meet different measurement needs.
• With laser range sensor, the unique laser range sensor can capture soil compactness
  data in increments of 1cm.
• High-precision sensor: the equipment has a high-precision sensor, the measurement
  accuracy can reach 0.001.
• Wide measuring depth: It can read soil compactness data at a measuring depth of
  up to 45cm (customizable depth).
• Diversified data presentation: The device can directly measure soil compactness and
  record real-time data, peak data, measurement depth, depth compactness relationship
  graph and other measurement information during the measurement process.
• Dynamic presentation of measurement data: the device automatically generates the
  depth-firmness relationship curve of each measurement point and records the soil
  tillage profile information of each measurement point.
• Geographic coordinates positioning function and cone head wear self-check function.
• Measuring depth presetting function: in order to facilitate accurate measurement of
  the current measuring depth, the device has a measuring depth presetting function in
  advance.
• Multi-view function and wireless transmission function.
• The device can store >10,000 pieces of data, and the power of the device can be
  used continuously for >10h.

The Technical Parameter:
