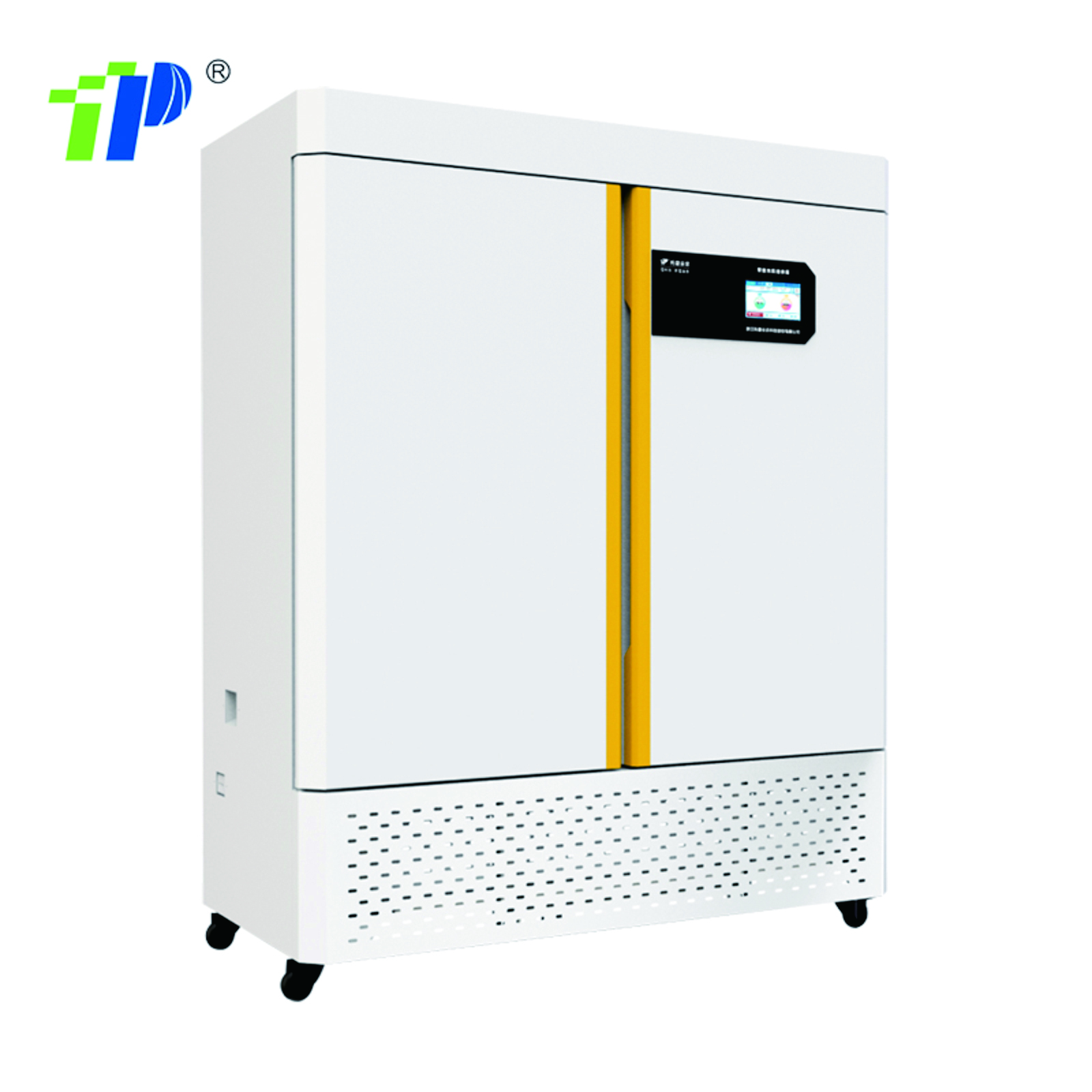

TP-G Series Intelligent Illumination Chamber (Research Model)

» Intelligent Artificial Climate Chamber » Reach-in Chamber » TP-G Series Intelligent Illumination Chamber (Research Model)

    • TP-G Series Intelligent Illumination Chamber (Research Model)

    CATEGORY AND TAGS:
    Reach-in Chamber, Intelligent Artificial Climate Chamber

    Model: TP-G Series

    enquiry
    • Specifications

    Introduction

    The TP-GC series accurately control the temperature, humidity and light intensity, and provide an ideal artificial climate environment for various experiments.

    Features

    • Intelligent control system: Temperature, humidity, and light intensity can be precisely controlled.
    • Abnormal alarm reminder: The device has the functions of opening the door overtime alarm, temperature overrun alarm, and sensor failure alarm.
    • A number of safety protection functions: with leakage protection, fault circuit protection,over-temperature protection, compressor overload protection, current overload protection and other functions.
    • Power-down memory function: After a power failure, the original working state can be continued when the machine is turned on again.
    • Time period setting function: Multiple time periods can be set, and the running time of each time period can be set separately.
    • Defrost function: defrost on demand and precisely control the temperature of the chamber.
    • Sterilization function: ultraviolet sterilization, automatic shutdown of sterilization function at the end of the set time.
    • Remote data viewing: Support APP, WeChat, and cloud platform to remotely view data and curves.
    •

    Technical Parameter

    Parameter TP-G420C TP-G1000C
    Volume 420L 1000L
    Dimensions 762*765*1900mm 1552*765*1940mm
    Temperature range When the light is off: 0~50℃
    When the light is on: 10~50℃
    Temperature fluctuations ±0.1℃ ±0.3℃
    Humidity range 50 ~ 95%RH (when the temperature of the box is 10~50℃)
    50 ~ 80%RH (when the temperature of the box is 50~55℃)
    50 ~ 60%RH (when the temperature of the box is 55~60℃)
    <50%RH (when the temperature of the box is 60~65℃)     		50~95%RH (when the temperature of the box is 10~50℃)
    50~70%RH (when the temperature of the box is 50~55℃)
    <50%RH (when the temperature of the box is 55~60℃)
    <40%RH (when the temperature of the box is 60~65℃)
    Humidity fluctuations ±2%RH ±3%RH
    Light intensity 0~22000LUX (Higher lighting can be customized)
    Lighting method Surrounded by light sources on three sides
