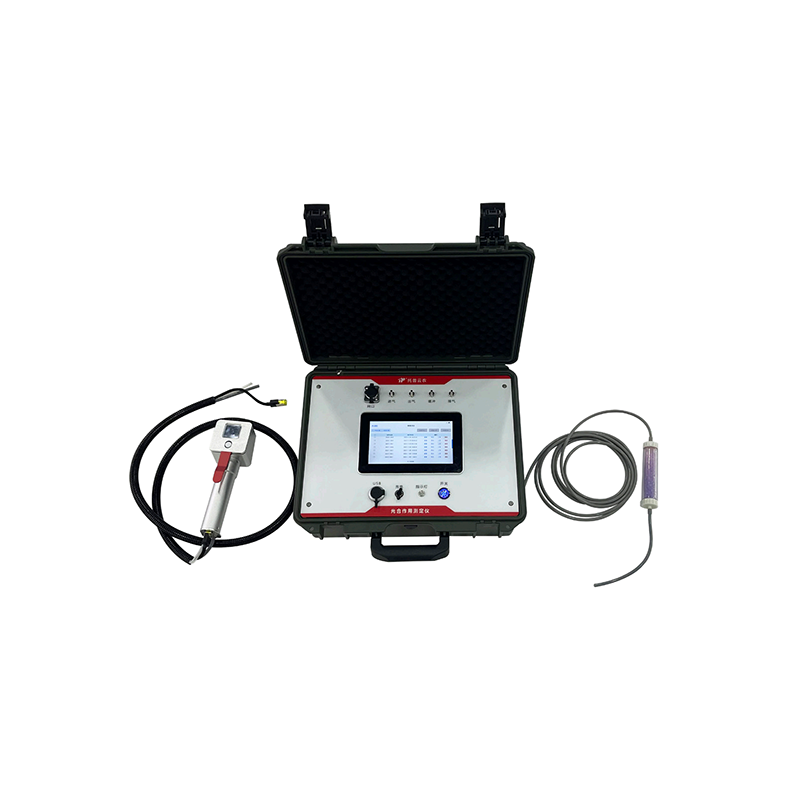

3051D Plant Photosynthesis Meter

» Plant Phyenotype Analysis » Photosynthesis Analyzer » 3051D Plant Photosynthesis Meter

3051D Plant Photosynthesis Meter

CATEGORY AND TAGS:
Photosynthesis Analyzer, Plant Phyenotype Analysis

3051D

enquiry
  • Specifications

Introduction:

The plant photosynthesis analyzer 3051D can measure CO2 concentration, leaf temperature, photosynthetically active radiation ( PAR ), and leaf chamber temperature and humidity. Through scientific calculations, photosynthesis indicators such as leaf photosynthetic rate ( Pn ), leaf transpiration rate ( Tr ), intercellular CO2 concentration ( Ci ), stomatal conductance ( Gs ) and water use efficiency ( WUE ) can be obtained.

Product Features:

  • Two measurement modes
    Open circuit measurement and closed circuit measurement.
  • Usage scenario
    It can be used both indoors and outdoors, and can be measured both in vivo and in vitro.
  • Leaf chamber (reactor) optional
    Suitable for measuring different objects such as plant leaves, seeds, insects, etc.
  • Data viewing
    The host displays and stores data in real-time. The stored data can be imported into the computer for secondary analysis.
Technical Parameter:
Measurement Parameters Measurement Range Resolution Error/Accuracy
CO₂ analysis (Non-Dispersive InfraRed) 0~1000PPm / 0~1500ppm / 0~2000ppm 0.1ppm 0.1ppm
Leaf chamber temperature (High precision digital temperature sensor) 0~50℃ 0.1℃ ±0.2℃
Leaf temperature (RTD temperature sensor) 0~50℃ 0.1℃ ±0.2℃
Leaf humidity (High precision digital humidity sensor) 0~100% 0.10% ≤±3%
Photosynthetic active radiation (PAR) (Silicon cell with correction filter) 0-2500μmol·m⁻²·s⁻¹ — ≤5μmol·m⁻²·s⁻¹
Leaf chamber size I：20×25mm II：55×20mm (Standard configuration) III：65×10mm
