Automatic Table High Speed Refrigerated Centrifuge

» Weather Monitor Instrument » Automatic Table High Speed Refrigerated Centrifuge

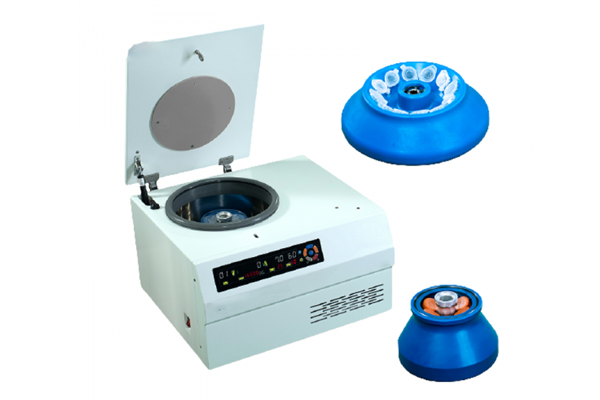

Automatic Table High Speed Refrigerated Centrifuge

CATEGORY AND TAGS:
Weather Monitor Instrument

Model: TP3-16KR

enquiry
  • Specifications
Key Features

◎High torque AC frequency conversion motor, free maintenance.
◎Medium size and good compatibility with LED display.
◎Automatic identification rotors and speed limit control.
◎Acceleration/deceleration ,RPM , Speed and RCF can be customized based on request.
◎Automatically calculate RCF , RPM and RCF switching freely.
◎Up to 10 level accelerate and decelerate control.
◎Over speed, over heat, unbalance protections with auto lid lock.
◎Imported energy-efficient ECO friendly refrigeration system.
◎One key pre-cooling function.

Applications


TP3-16KR desktop high-speed refrigerated centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and etc. It is an indispensable instrument for centrifugation at hospitals, research institutes and universities.



Technical Parameter
Model
TP3-16KR
Max RPM
16500rpm
Max RCF
18757×g
Max Capacity
6×50ml
Timer
1min~99min
Revolutions/min
±10r/min
Temp Range
-20℃~40℃
Temp Accuracy
±1.0℃
Voltage
AC 220±22V 50Hz 15A
Power
800W
Noise Level
≤ 60dB(A)
Chamber Diameter
Φ280mm
Dimensions (L x W x H)
480×560×360 (mm)
Packaging Dimensions
640×660×470(mm)
Net Weight
70kg
Rotor
No
Capacity
MAX RPM/MAX RCF
RCF(×g)
Angle Rotor
1
12×1.5/2.2ml
16500rpm/18360×g
18360×g
2
12×5ml
15000rpm/15940×g
15940×g
3
24×1.5/2.2ml
14000rpm/18757×g
18757×g
4
12×10ml round bottom
12000rpm/14800×g
5
6×50ml/ round bottom
11000rpm/12840×g
6
6×50ml/Sharp bottom
11000rpm/12840×g
Elisa plate Rotor
7
2x2x48 Hole
4200rpm/1900×g
