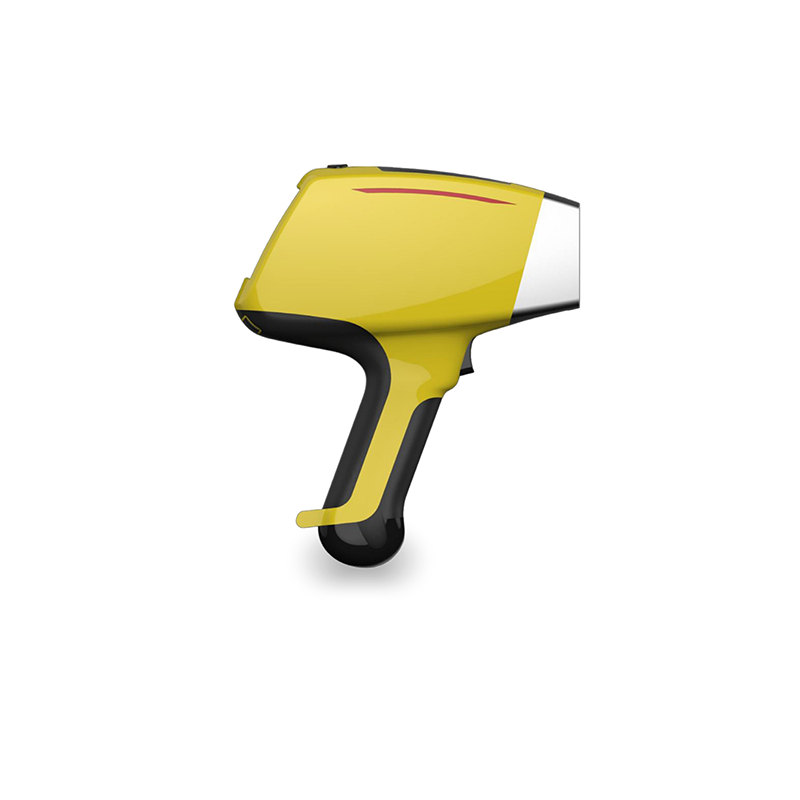

TPJS-B Portable Soil Heavy Metal Detector

» Soil Analysis » TPJS-B Portable Soil Heavy Metal Detector

TPJS-B Portable Soil Heavy Metal Detector

CATEGORY AND TAGS:
Soil Analysis

Model: TPJS-B

enquiry
  • Specifications

Introduction

The TPJS-B is a handheld device designed for on-site detection of heavy metals in soil. It is lightweight, compact, and easy to carry directly to fieldwork locations.Despite its small size, the instrument delivers accurate and reliable measurements

Detectable Standard Elements:

K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，W，Re，Pd，Au，Hg，Pb，Bi，Cs，Ba，Th，U

The Technical Parameter:

Weight 1.6 kg (with battery)
Dimensions (L×W×H) 254 × 79 × 180 mm
Excitation Source New integrated miniature X-ray tube, 6–50 kV tube voltage / 0–200 μA tube current freely adjustable; Ag target (standard); Au, W, Rh target (optional)
Detector High-sensitivity silicon drift detector; resolution < 125 eV
Detection Range All soil heavy metals between magnesium (Mg) and uranium (U)
Display System Industrial resistive touch screen, screen size: 4.3″, can also be operated with gloves; operating language including Chinese, English and other languages; automatically adjust the brightness of the display according to the brightness of the external environment
Data Processing Built-in 32 GB memory, stores up to 300,000 spectral data points and spectrograms
Heat Dissipation Special T-slot heat sink for improved cooling; no frequent cooldown waiting required
Safety Waterproof, dustproof, and shockproof carrying case
Power Supply System Intelligent battery with MSBUS bus for real-time monitoring; battery backup; battery capacity directly viewable; complies with aviation hazardous materials transport regulations; FCC, CE, and UN certified; single battery provides 8 hours of continuous operation
