Introduction:

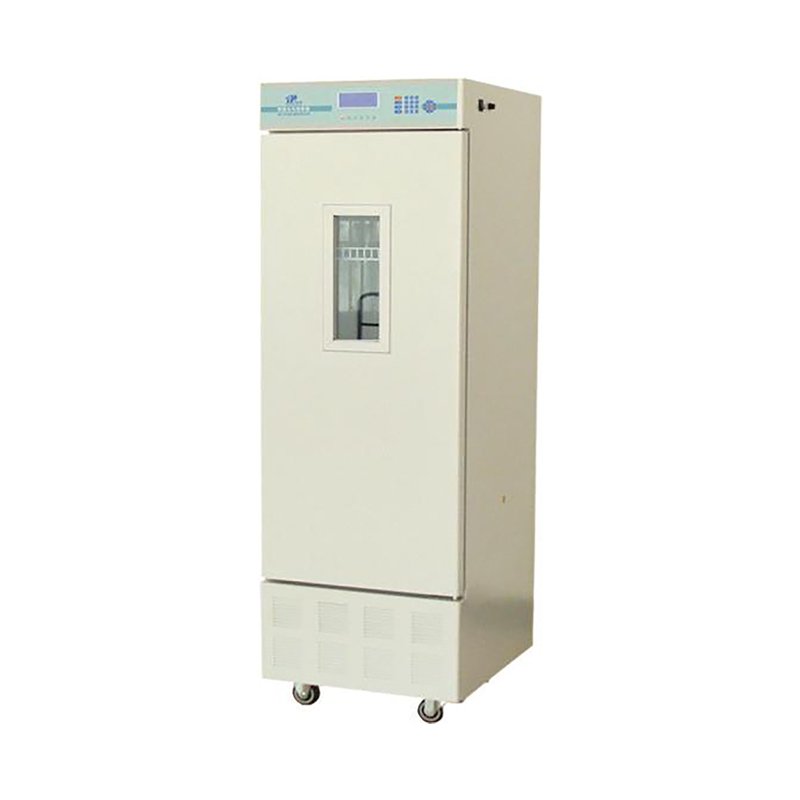

GTOP Intelligent Illumination Incubator is a biological incubation experimentation instrument, which adopts microcomputer automatic control system, programmable control mode, and intermitting cooling.Through setting the multiple parameters, it is able to mimic a natural environment. It has illumination,temperature –constant, day and night shift automatically functioning. It is able to meet various biological incubation tests.Our incubator is able to apply to various areas such as seed germinate & breeding, plant group foster and planting, animalcule incubation, breeding of insects and small animals, anti-oxidation experiment of medicines and environmental experiments of articles; and it is especially applicable for the study of Bioengineering, Medical study, agricultural, Aquatic, Animal husbandry etc.
Product Features:
- Micro-computer control, integrated control panel. The parameters can be set are: time, temperature,light, humidity, period etc.
- Over-temperature and sensor abnormality protection to ensure the equipment and sample safety.
- Adopt LED light, beneficial to plant growth, disease resistance
- A power-down protection, boot display after the state power of money, there are storage memory.
- Aluminum alloy frame, silver color and be able to the aging and deformation. With lock-door to protect the sample from falling out.
- The device with wheel, move easily.
- Inside the incubator is grid structure, which can be adjusted as the sample’s length, it is very convenient and practical.
- Duct-ventilated type with soft wind and uniformity temperature.
- the material of tank: stainless steel
- Anti-irradiation tempered- glass with coating to ensure a good insulation performance.
- About the light. It can be customized by users required. Our standard light is 8000lux. The max light we can provide is 12000lux.
- Optional capacity: 158L, 268L, 310L, 500L, 1000L
Technical Parameters:
Temperature range: 0-50°C
Temperature fluctuation: ±0.5
Temperature uniformity: ±1°C
Illuminance: 0~8000lux (light can be customized)
Can increase the light intensity according to customer requirements
Heating power: 300W (GTOP-1000: 700W)
Compressor power: 190W-320W
Compressor delay guard time: about 3min
Noise: <70Db
Working mode: continuous operation (compressor intermittent working)
Working environment:
Temperature: 0-38°C, humidity<80%RH, Non-corrosiveness gas
Power: 220±22V, 50±0.5HZ
Temperature, humidity, light can be programmed to periods
Model
|
GTOP-158Y
|
GTOP-268Y
|
GTOP-310Y
|
GTOP-500Y
|
GTOP-1000Y
|
Volume
|
150L
|
268L
|
310L
|
500L
|
1000L
|
External Size(L*W*H)
|
525*540*1580 mm
|
580*630*1755 mm
|
580*630*1895 mm
|
705*825*1971 mm
|
1230*708*1865 mm
|
Inner Size(L*W*H)
|
424*430*962mm
|
480*480*1040mm
|
480*480*1290mm
|
580*600*1310mm
|
1230*600*1270mm
|
Temp range
|
0~50℃
|
0~50℃
|
0~50℃
|
0~50℃
|
0~50℃
|
Light degree
|
0~8000LUX
|
0~8000LUX
|
0~8000LUX
|
0~8000LUX
|
0~5500LUX
|
