Large Table High Speed Refrigerated Centrifuge

» Seed Analysis » Large Table High Speed Refrigerated Centrifuge

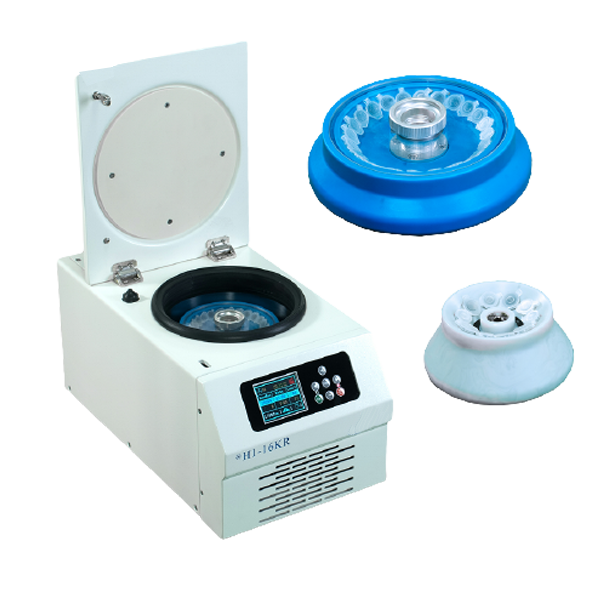

Large Table High Speed Refrigerated Centrifuge

CATEGORY AND TAGS:
Seed Analysis

Model: TP2-16KR

enquiry
  • Specifications
Key Features

◎Small size with LCD display, great space saver for the lab.
◎Steel structure, centrifuge chamber made of stainless steel.
◎AC frequency variable motor drives, stably and quietly during operation.
◎Parameters can be revised during operation without stopping.
◎Automatic calculates and displays RCF at the same time.
◎10 level speed control with 40 groups of program.
◎Emergency lid safety lock.
◎Imported energy-efficient ECO friendly refrigeration system.
◎One key pre-cooling function.

Applications


TP2-16KR high speed refrigerated centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology,etc. It is an indispensable instrument for centrifugation at all levels of hospitals, research institutes, and universities.



Technical Parameter
Model
TP2-16KR
Max RPM
16500rpm
Max RCF
18757×g
Max Capacity
6×50ml
Timer
1min~99min
Revolutions/min
±10r/min
Temp Range
-20℃~40℃
Temp Accuracy
±1.0℃
Voltage
AC 220±22V 50Hz 10A
Power
800W
Noise Level
≤ 60dB(A)
Chamber Diameter
Φ250mm
Dimensions (L x W x H)
480×560×360 (mm)
Packaging Dimensions
640×660×470(mm)
Net Weight
65kg



Rotor
No
Capacity
MAX RPM/MAX RCF
RCF(×g)
Angle Rotor
1
12×1.5/2.2ml
16500rpm/18360×g
18360×g
2
12×5ml
15000rpm/15940×g
15940×g
3
24×1.5/2.2ml
14000rpm/18757×g
18757×g
4
12×10ml
12000rpm/14800×g
5
6×50ml/round bottom
11000rpm/12840×g
