Table High Speed Centrifuge

» Seed Analysis » Table High Speed Centrifuge

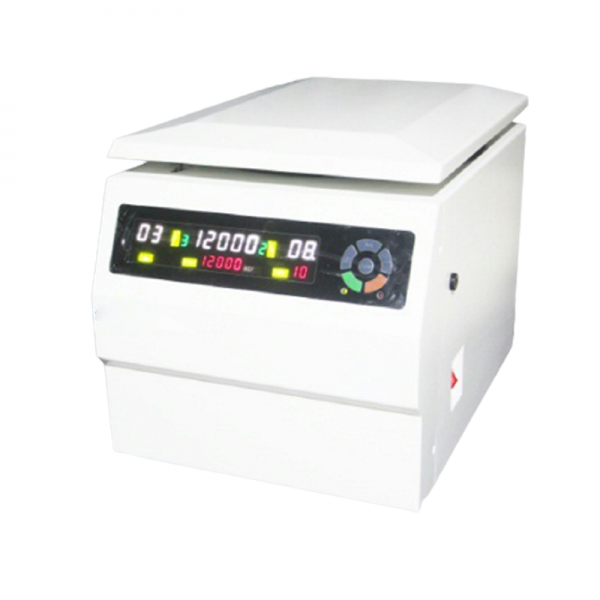

Table High Speed Centrifuge

CATEGORY AND TAGS:
Seed Analysis

Model: TP2-16K

enquiry
  • Specifications
Key Features
◎Microcomputer control with LED display, driven by AC frequency conversion motor.
◎Acceleration/deceleration ,RPM , Speed and RCF can be customized based on request.
◎Automatically calculate RCF , RPM and RCF switching freely.
◎Up to 10 level accelerate and decelerate control.
◎One key short-time centrifuge button.
◎Over speed, over heat, unbalance protections with auto lid lock.

Applications

◎TP2-16K desktop high-speed centrifuges are widely used in clinical medicine, biochemistry, genetic engineering, immunology and etc
. It is essential equipment for hospitals, research institutes and universities.

Technical Parameter

Model
TP2-16K
Max RPM
16500rpm
Max RCF
18757×g
Max Capacity
6×50ml
Timer
1min~99min
Revolutions/min
±10r/min
Voltage
AC 220±22V 50/60Hz 10A
Power
420W
Noise Level
≤ 60dB(A)
Chamber Diameter
Φ250mm
Dimensions (L x W x H)
400×300×330 (mm)
Packaging Dimensions
410×310×360 (mm)
Net Weight
23kg
Gross Weight
30kg



Rotor Type
No.
Capacity
RPM(r/min)
RCF(×g)



Angle Rotor
1
12×1.5/2.2ml
16500rpm
18360×g
2
12×5ml
15000rpm
15940×g
3
24×1.5/2.2ml
14000rpm
18757×g
4
12×10ml
12000rpm
14800×g
5
6×50ml/Round Type
11000rpm
12840×g
