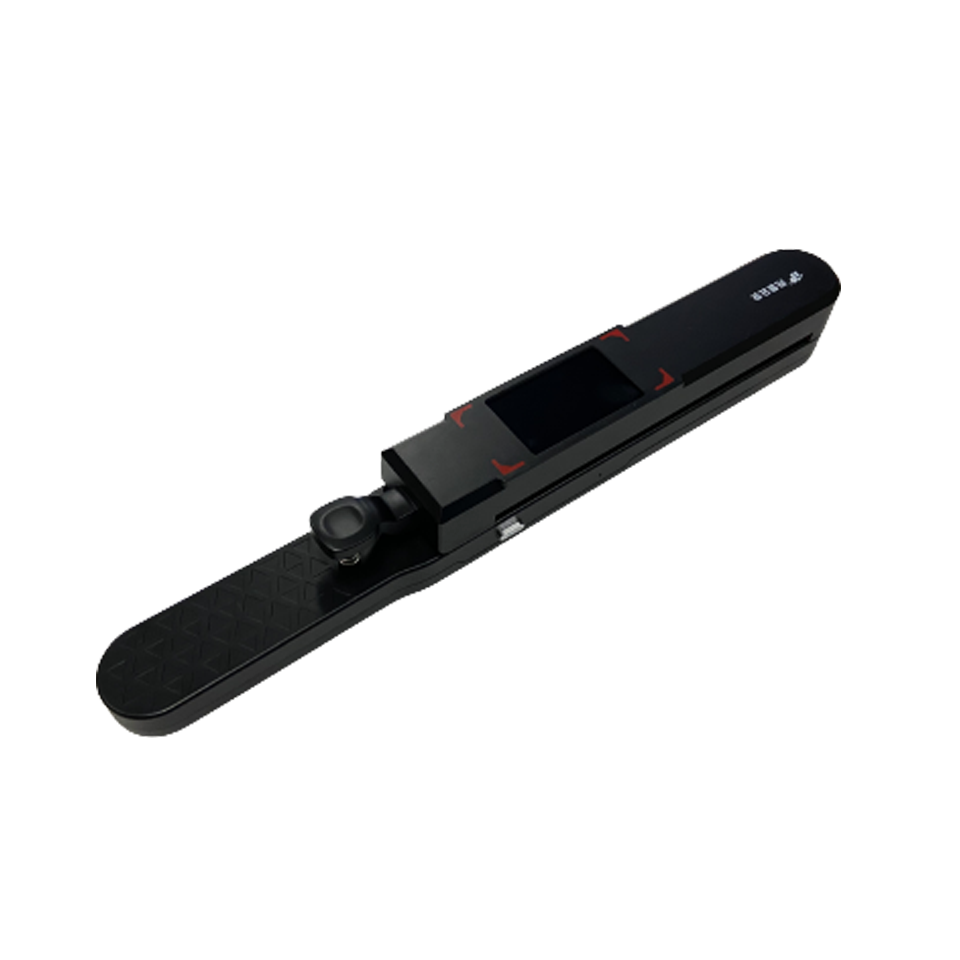

Portable Handheld Leaf Area Meter

» Plant Phyenotype Analysis » Portable Handheld Leaf Area Meter

  • Portable Handheld Leaf Area Meter

    CATEGORY AND TAGS:
    Plant Phyenotype Analysis

    Potable Leaf Area Meter

    Handheld Leaf Area Measurement

    Model: YMJ-A/YMJ-B

    enquiry
    • Specifications

    Portable Leaf Area Meter

    Brief Introduction

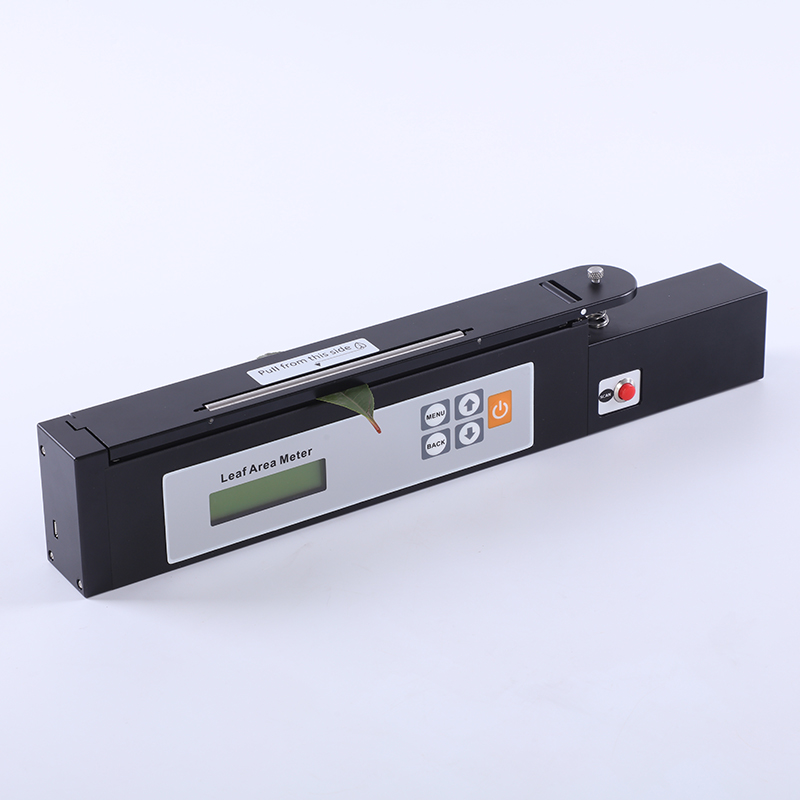

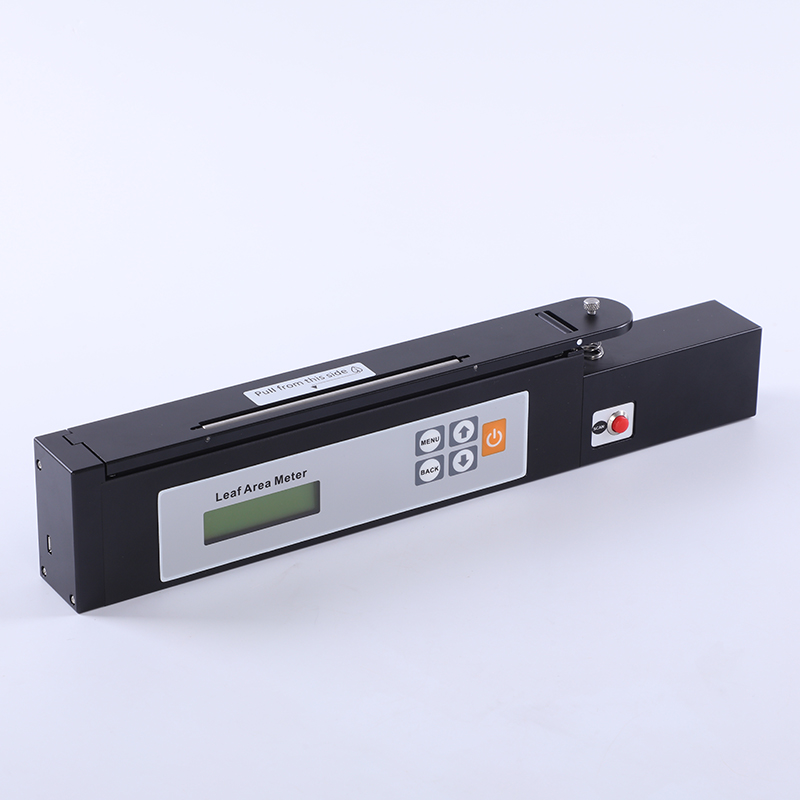

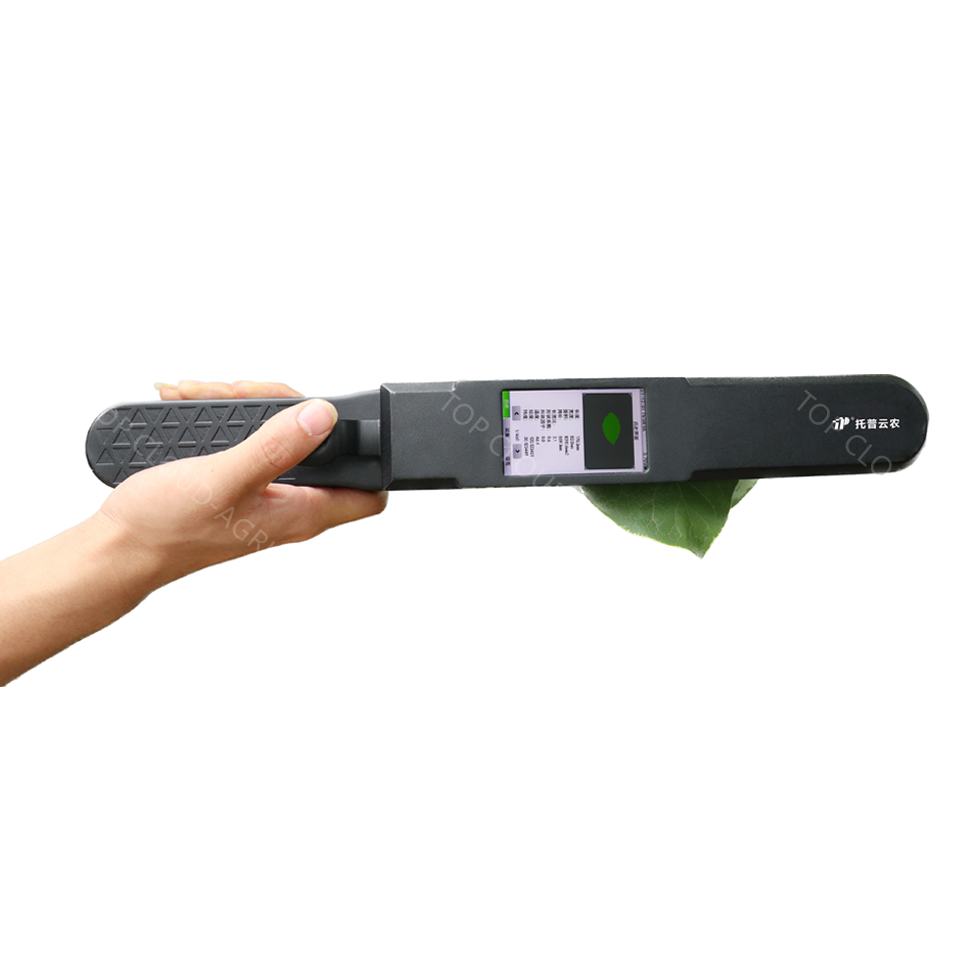

    Portable Leaf Area Meter is a portable instrument for non-destructive leaf area measurements. This handheld meter can measure the leaf area, average area, length, width, perimeter and ratio of length and width. The measured data can be saved by the inside memory and upload by USB.

    Characteristics

    • Parameters: Leaf area, average area, length, width, perimeter, and ratio of length and width.
    • With Microcomputer technology and LCD display.
    • With a rechargeable lithium battery.
    • With time recording function and the measuring time can be
    • Communication interfaces: mini-USB interface and the data can be lead into the computer (only apply to YMJ-B).
    • Cover material: iron

    Technical Parameters

    • Test unit: millimeter, square millimeter(upgraded)
    • Precision: ±2%
    • Resolution: 0.1mm(upgraded)
    • Measuring Length: ≤2000mm(upgraded)
    • Measuring Width: ≤213mm(upgraded)
    • Thickness: ≤3mm(upgraded)
    • Data capacity: 5000 Groups (upgraded)
    • Power: 3.7V Li-ion battery(upgraded)

    The Function Difference

    YMJ-A : without computer interface

    YMJ-B: RS-232 connects the meter to PC, data can be converted to excel format can be printed.
