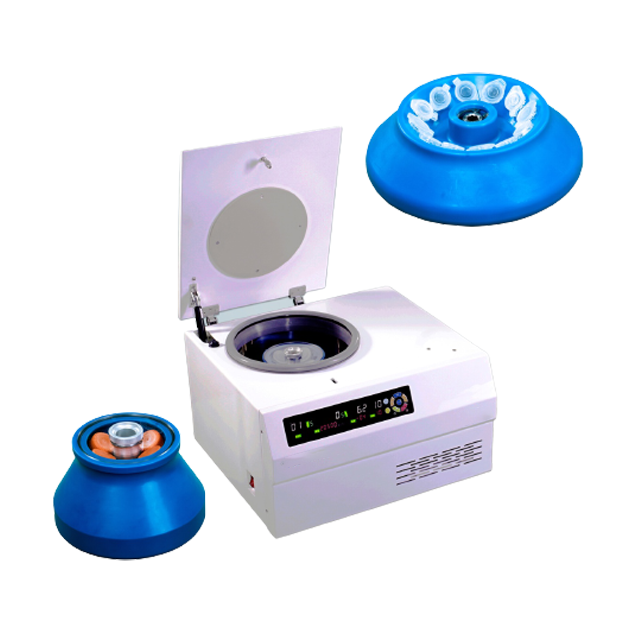

Hot Sale High Speed Refrigerated Centrifuge

» Seed Analysis » Hot Sale High Speed Refrigerated Centrifuge

Hot Sale High Speed Refrigerated Centrifuge

CATEGORY AND TAGS:
Seed Analysis

Model:TP3-20KR

enquiry
  • Specifications
Key Features

◎High torque AC frequency conversion motor, free maintenance.
◎Medium size and good compatibility with LED display.
◎Automatic identification rotors and speed limit control.
◎Acceleration/deceleration ,RPM , Speed and RCF can be customized based on request.
◎Automatically calculate RCF , RPM and RCF switching freely.
◎Up to 10 level accelerate and decelerate control.
◎Over speed, over heat, unbalance protections with auto lid lock.
◎Imported energy-efficient ECO friendly refrigeration system.
◎One key pre-cooling function.

Applications


TP3-20KR desktop high-speed refrigerated centrifuge is widely used in clinical medicine, biochemistry, genetic engineering, immunology and etc. It is an indispensable instrument for centrifugation at hospitals, research institutes and universities.

Technical Parameter



Model
TP3-20KR
Max RPM
20500rpm
Max RCF
31785×g
Max Capacity
4*100ml
Timer
1min~99min
Revolutions/min
±10r/min
Temp Range
-20℃~40℃
Temp Accuracy
±1.0℃
Voltage
AC 220±22V 50Hz 15A
Power
1000W
Noise Level
≤ 60dB(A)
Chamber Diameter
Φ280mm
Dimensions (L x W x H)
480×560×360 (mm)
Packaging Dimensions
640×660×470(mm)
Net Weight
70kg



Rotor
No
Capacity
MAX RPM/MAX RCF
RCF(×g)







Angle Rotor

1
16×1.5/2.2ml
20500rpm/31785×g
18360×g
2
18×0.5ml
16500rpm/17000×g
15940×g
3
12×5ml
16000rpm/18090×g
18757×g
4
24×1.5/2.2ml
15000rpm/21890×g
5
36×1.5/2.2ml
14000rpm/20025×g
6
12×10ml
14000rpm/19640×g
7
4×8×0.2ml PCR pipe
13500rpm/11610×g
8
6×50ml/ round bottom
13000rpm/17940×g
9
6×50ml/Sharp bottom
12000rpm/15450×g
10
12×15ml/Sharp bottom
12000rpm/15710×g
11
4×100ml
12000rpm/17915×g
12
8x50ml/Round bottom
11000rpm/13450xg
13
8x50ml/Sharp bottom
10000rpm/12070xg
Enzyme plate
14
2x2x48 Hole
4200rpm/1900×g
