Soil Nutrient Tester

» Soil Analysis » Soil Nutrient Tester

  • Soil Nutrient Tester

    Soil Analysis

    Testing Objetcs: NPK, Salinity, pH, Salinity, Moisture, Organic Matter in soil

    Model: TPY-6A /6PC/ 7PC

    • Specifications

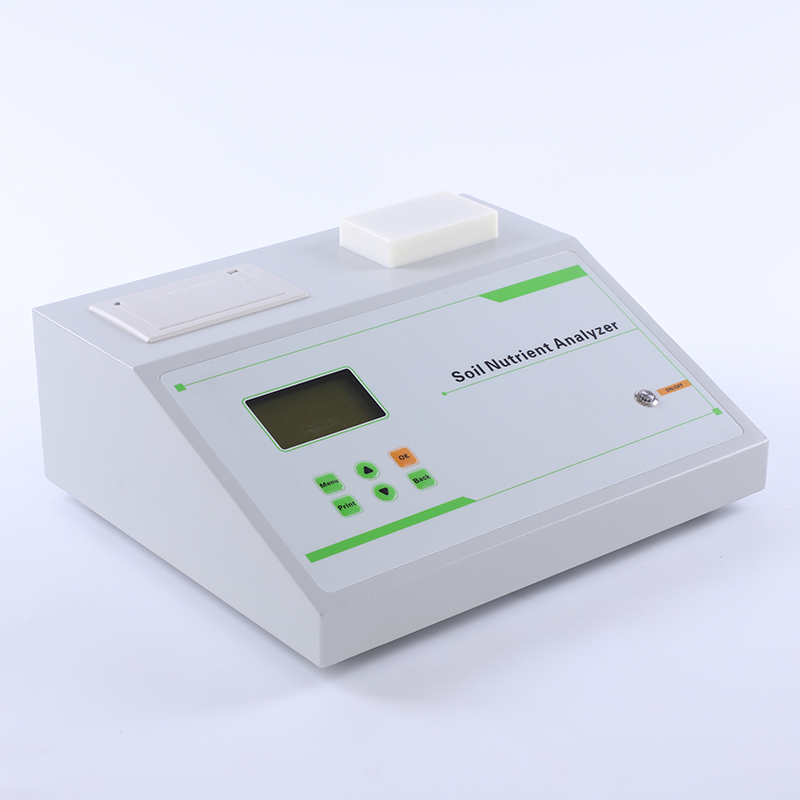

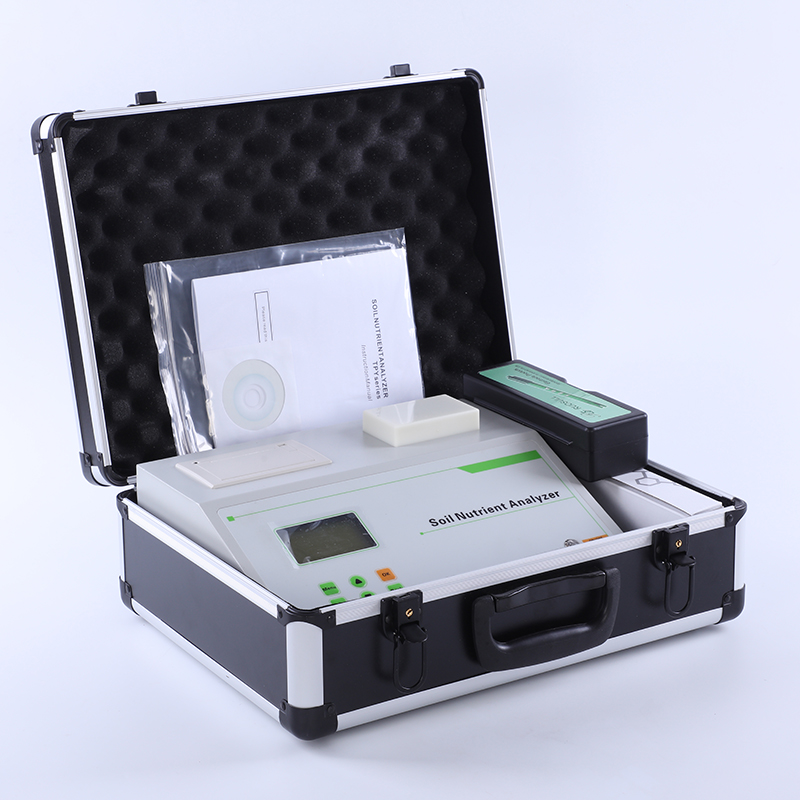

    Lab Used Portable Soil Nutrient Tester or Analyzer


    • Quickly test the N, P, K, organic matter, salinity, and pH in the soil.
    • With the function of time display, can automatically record and save the time of tested sample.
    • Large capacity storage (time, place, fertilizers), datum can be checked at any time
    • Print testing date, sample number, sample items, sample contents, variety and so on
    • Big-screen LCD shows, and will guide you how to operate.
    • Can set crop variety, crop yield, fertilizer variety, and automatically count the fertilizing amount.

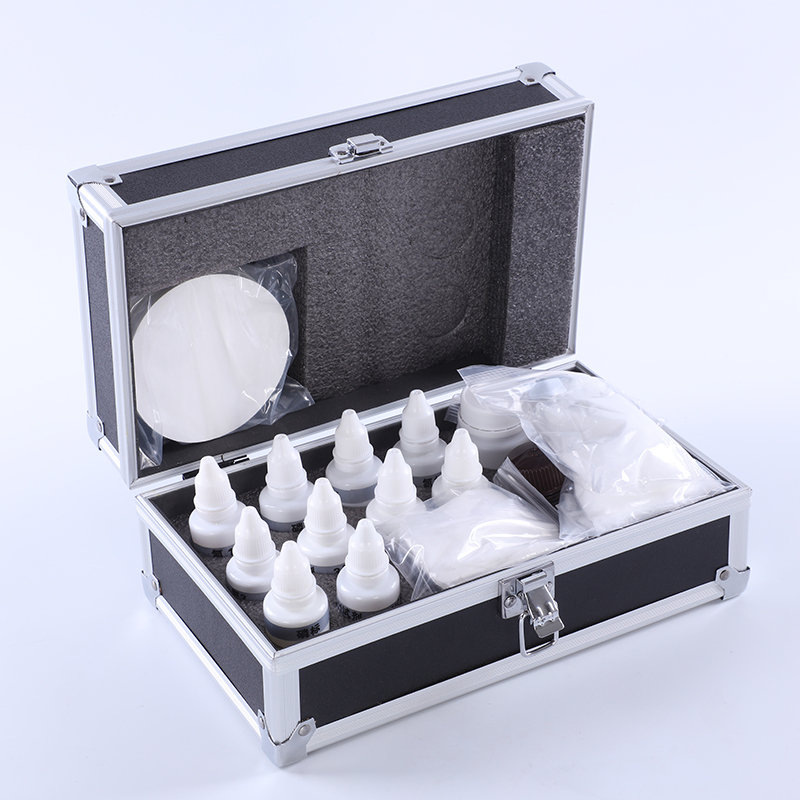

    • The reagent included: low requirement to the storage condition, last longer, and low test cost


    Soil Nutrient technical parameter

    • Stability: Absorbency of light drift<0.003
    • Repeatability: Absorbency of light<0.005
    • Linearity errors: red light for Copper sulfate, and blue light for potassium bichromate < 3.0%
    • Sensitivity: Red light≥4.5×0-5 / Blue light≥3.17×10-3
    • Wavelength range: Red light 620±5nm; Blue light440±5nm
    • Anti-Knocking performance: qualified

    pH technical parameter

    • Testing range: 1-14
    • Error: ±0.1

    Salinity technical parameter

    • Testing range: 0.01% -1.00%
    • Error: ±5%

    Soil moisture technical parameter

    • Moisture unit: % (m³/m³)
    • Accuracy: ±2%
    • Moisture content rate testing range: 0-100%

     Instrument technical parameter

    • Display mode: LCD display
    • Interface: USB
    • Working environment: 0~40℃  35~85%RH
    • Alternating current (AC): 220V-240V, 50Hz, adapter: 12V/3A
    • Size: 32*28*11cm
