Plant Disease Tester

» Plant Phyenotype Analysis » Plant Disease Tester

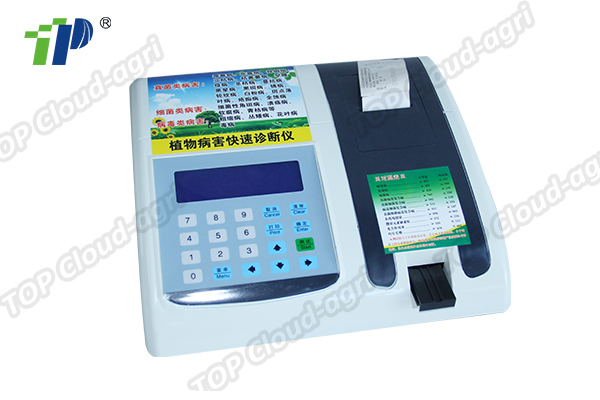

Plant Disease Tester

CATEGORY AND TAGS:
Plant Phyenotype Analysis

Model :TPH-II

enquiry
  • Specifications

Introduction:
In the process of plant’s growth and development, there are some diseases mainly caused by bacteria, fungi and viruses etc. And in the past time, the accordingly scientific knowledge is not widespread, so the farmers can’t understand these reasons. There has been “trying everything” phenomenon, the farmers spraying lots of pesticides. As a result of this untargeted way, it not only caused great waste, but also reduced the quality of agricultural products, and produced excessive pesticide residues. The Plant Disease Tester can accurately diagnose the vegetable dyes pathogens in the early stages of infection, and also can help farmers to determine the varieties of pesticide use quickly and accurately, then to reduce the losses and increase the efficiency.

Features and Characteristic:
1.Sampling parts: various types of plant stalk, stem, leaf and fruit can be sampled
2.Scope: a variety of crops, plants, fruits, vegetables and tea etc.
3.Quickly diagnose a variety of viruses and bacteria:
1) Fungus: botrytis cinerea , downy mildew, damping off, yellows, seedling blight,morning and late Pestilence, stem blight, gummy stem blight, scab, black spot, rust disease, ring rot, powdery mildew, alternaria leaf spot, shot hole, full rot.
2) Bacterial diseases: ulcers disease, bacterial spot, soft rot, bacterial wilt
3) Viral diseases: stubby disease, plexus dwarf, mosaic virus disease
4.Chinese large-screen liquid crystal display and prompts, easy to use
5.Automatic control, automatic calculation, automatic calibration, automatic printing, and has high precision
6.Automatic printer integrated design
7.It can be connected to the computer and the printer, store test data for the user profile to provide guidance of dispense
8.Continuous testing of multiple samples, low-cost test
9.Test speed: Single Test 60 parts / hour, continuous testing 120 parts / hour
10.Print method: thermal printer
11.Working power: AC220V ± 10%, 50Hz ± 2Hz
12.Power:≤30W
13.Net weight:≤3kg

Instrument configuration:
1. Plant Disease Tester      1
2. Dipstick                           1
3. Fuse                               2
4. Power cable                    1
5. Printer paper                   1
6. Indicator solution             5
